هيئة أنظمة التلفزيون المتطورة ATSC=Advanced Television System Committee هي هيئة حكومية أمريكية ذات طابع فنـي صناعي مكلفـة بتطوير أسـلوب وأداء ومفاهيم التلفزيـون الرقمي DTV=Digital TV ووضع المعايير المناسبة له ضمن الولايات المتحدة منـذ عام 1997. يتعلق معيار ATSC أيضا بمفهومي البث التلفｄｆｓｇｆｄｇｆｄｄっさزيوني الرقمي DTV والبث التلفزيوني الرقمي ذو الأداء المتطور HDTV .
MPEG-2
| Resolution | Aspect ratio | Pixel aspect ratio | Scanning | Frame rate (Hz) | |
|---|---|---|---|---|---|
| Vertical | Horizontal | ||||
| 1080 | 1920 | 16:9 | square | progressive | 23.976 24 29.97 30 |
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) | ||||
| 720 | 1280 | 16:9 | square | progressive | 23.976 24 29.97 30 59.94 60 |
| 480 | 704 | 4:3 or 16:9 | non-square | progressive | 23.976 24 29.97 30 59.94 60 |
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) | ||||
| 640 | 4:3 | square | progressive | 23.976 24 29.97 30 59.94 60 | |
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) | ||||
ATSC also supports PAL frame rates and resolutions which are defined in ATSC A/63 standard.
| Resolution | Aspect ratio | Pixel aspect ratio | Scanning | Frame rate (Hz) | |
|---|---|---|---|---|---|
| Vertical | Horizontal | ||||
| 1080 | 1920 | 16:9 | square | interlaced | 25 (50 fields/s) |
| progressive | 25 | ||||
| 720 | 1280 | 16:9 | square | progressive | 50 |
| 576 | 720 | 4:3 or 16:9 | non-square | progressive | 25 50 |
| interlaced | 25 (50 fields/s) | ||||
| 544 | 4:3 or 16:9 | non-square | progressive | 25 | |
| interlaced | 25 (50 fields/s) | ||||
| 480 | 4:3 or 16:9 | non-square | progressive | 25 | |
| interlaced | 25 (50 fields/s) | ||||
| 352 | 4:3 or 16:9 | non-square | progressive | 25 | |
| interlaced | 25 (50 fields/s) | ||||
| 288 | 352 | 4:3 or 16:9 | non-square | progressive | 25 |
The new standards supports 1080p at 50, 59.94 and 60 frames per second; such frame rates require H.264/AVC High Profile Level 4.2, while standard HDTV frame rates only require Levels 3.2 and 4, and SDTV frame rates require Levels 3 and 3.1.
| Resolution | Aspect ratio | Pixel aspect ratio | Scanning | Frame rate (Hz) | Level | |
|---|---|---|---|---|---|---|
| Vertical | Horizontal | |||||
| 1080 | 1920 | 16:9 | square | progressive | 23.976 24 29.97 30 25 |
4 |
| progressive | 59.94 60 50 |
4.2 | ||||
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) 25 (50 fields/s) |
4 | ||||
| 1440 | 16:9 | non-square (4:3) |
progressive | 23.976 24 29.97 30 25 |
4 | |
| progressive | 59.94 60 50 |
4.2 | ||||
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) 25 (50 fields/s) |
4 | ||||
| 720 | 1280 | 16:9 | square | progressive | 23.976 24 29.97 30 59.94 60 25 50 |
3.2, 4 |
| 480 | 720 | 4:3 or 16:9 | non-square (10:11 or 40:33) |
progressive | 23.976 24 29.97 30 59.94 60 25 50 |
3.1, 4 |
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) 25 (50 fields/s) |
3 | ||||
| 704 | 4:3 or 16:9 | non-square (10:11 or 40:33) |
progressive | 23.976 24 29.97 30 59.94 60 25 50 |
3.1, 4 | |
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) 25 (50 fields/s) |
3 | ||||
| 640 | 4:3 | square | progressive | 23.976 24 29.97 30 59.94 60 25 50 |
3.1, 4 | |
| interlaced | 29.97 (59.94 fields/s) 30 (60 fields/s) 25 (50 fields/s) |
3 | ||||
| 544 | 4:3 | non-square (40:33) |
progressive | 23.976 25 |
3 | |
| interlaced | 29.97 (59.94 fields/s) 25 (50 fields/s) | |||||
| 528 | 4:3 | non-square (40:33) |
progressive | 23.976 25 |
3 | |
| interlaced | 29.97 (59.94 fields/s) 25 (50 fields/s) | |||||
| 352 | 4:3 | non-square (20:11) |
progressive | 23.976 25 |
3 | |
| interlaced | 29.97 (59.94 fields/s) 25 (50 fields/s) | |||||
| 240 | 352 | 4:3 | non-square (10:11) |
progressive | 23.976 25 |
3 |
| 120 | 176 | 4:3 | non-square (10:11) |
progressive | 23.976 25 |
1.1 |
الأنظمة الأخرى

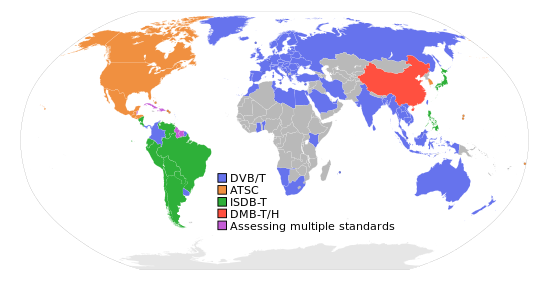

البلدان والأراضي التي تستعمل ATSC
الأمريكتان
البهاماز
برمودا
كندا (in provincial/territorial capitals and locations with 300,000 or more people; to be completely transitioned by August 31, 2011)
آسيا/الهادي
كوريا الجنوبية (to be completely transitioned by December 31, 2012)- United States territories (converted on June 12, 2009, excluding LPTV stations)
