بوينگ سي-135 ستراتوليفتر

C-135 Stratolifter

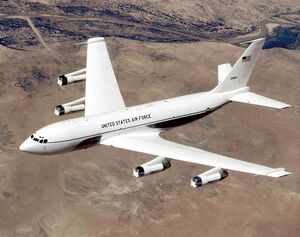

	C-135C Speckled Trout
Role	Transport aircraft
National origin	United States
Manufacturer	Boeing
First flight	23 June 1961
Introduction	August 1961
Status	Active service
Primary user	United States Air Force
Produced	1960–1963
Number built	48
Developed from	Boeing 367-80
Variants	Boeing EC-135 ; Boeing KC-135 Stratotanker ; Boeing NC-135 ; Boeing RC-135 ; OC-135B Open Skies ; WC-135 Constant Phoenix

The Boeing C-135 Stratolifter is a transport aircraft derived from the prototype Boeing 367-80 jet airliner (also the basis for the 707) in the early 1950s. It has a narrower fuselage and is shorter than the 707. Boeing gave the aircraft the internal designation of Model 717.^[2] Since the first one was built in August 1956, the C-135 and its variants have been a fixture of the United States Air Force.

Specifications (C-135)

المواصفات العامة

الطاقم: 3: pilot, copilot, loadmaster (4 for non-PACER CRAG aircraft)
الطول: 136 ft 3 in (41.53 m)
الباع: 130 ft 10 in (39.88 m)
الارتفاع: 41 ft 8 in (12.70 m)
مساحة الجناح: 2،433 sq ft (226 m²)
الوزن الفارغ: 98،466 lb (44،663 kg) ,empty operating weight 124,000 lb (56,200 kg)
الوزن الإجمالي: 297،000 lb (135،000 kg)
وزن الإقلاع الأقصى: 322،500 lb (146،000 kg)
Powerplant: 4 × 4 Pratt & Whitney TF-33-PW-102 low-bypass turbofan engines , 18،000 lbf (80 kN) thrust each

الأداء

السرعة القصوى: 580 mph (933 km/h, 500 kn)
المدى: 3،450 mi (5،550 km, 3،000 nmi)
سقف الخدمة: 50،000 ft (15،200 m)
Rate of climb: 4،900 ft/min (25 m/s) 1,490 m/min

References

Citations

^ Hopkins III, Robert S. (2017). The Boeing KC-135 Stratotanker; More Than a Tanker. Crécy Publishing Limited. p. 336. ISBN 978-1-91080-901-3.
^ "Historical Perspective, Start of a PROUD MISSION" Archived 2014-06-12 at the Wayback Machine, Boeing Frontiers, July 2006.

خطأ استشهاد: الوسم <ref> ذو الاسم "ab" المُعرّف في <references> غير مستخدم في النص السابق.

خطأ استشهاد: الوسم <ref> ذو الاسم "ASN" المُعرّف في <references> غير مستخدم في النص السابق.

Bibliography

Eden, Paul (ed.). The Encyclopedia of Modern Military Aircraft. London, UK: Amber Books, 2004. ISBN 1-904687-84-9.
Pither, Tony (1998). The Boeing 707 720 and C-135. England: Air-Britain (Historians) Ltd. ISBN 0-85130-236-X.
