ياكوفليف إم‌سي-21

(تم التحويل من Irkut MC-21)
MC-21
Model of the proposed MC-21-200
الوظيفة طائرة ركاب نفاثة بمحركين ضيقة البدن
بلد الأصل Russian Federation
المـُصـَنـِّـع United Aircraft Corporation
صممها Irkut Corporation and Yakovlev Design Bureau
الوضع In development[1]
العدد المبني 1[2]
قيمة البرنامج US$ 4.6 billion[3]
سعر الواحدة MC-21-200: US$ 72 million[4]
MC-21-300: US$ 91 million[5]

إركوت إم‌سي-21 Irkut MC-21 هي طائرة ركاب نفاثة روسية قصيرة-لمتوسطة المدى بمحركين تتسع لما بين 150-212 مقعد ركاب. الطائرة MC-21 هي قيد التطوير من قِبل إركوت ومجموعة مكتب التصميم ياكوڤليڤ (UAC).[6] وكانت تُعرف سابقاً بالإنگليزية بإسم MS-21؛ روسية: МС‑21 "Магистральный Самолёт 21 века" – "ماگيسترالني ساموليوت 21 ڤيكا" – "طائرة القرن 21".

التصميم مبني على الطائرة ياكوڤليڤ ياك-242 ذات المحركين التي لم يتم تنفيذها كتطوير للطائرة ياكوڤليڤ ياك-42 ذات المحركات الثلاث.[7] وحسب تصريح حديث أدلى به نائب رئيس الوزراء الروسي دميتري روگوزين، فإن الاسم التسلسلي للطائرة MC-21 سيكون مرة أخرى ياك-242.[8][9]

الهدف من الطائرة هو استبدال توپوليف تو-154 و توپوليف تو-204/214 في الخدمة،[10] the MC-21 certification and delivery was initially planned by 2016,[11] but later delayed to the end of 2018.[12][13]

التطوير

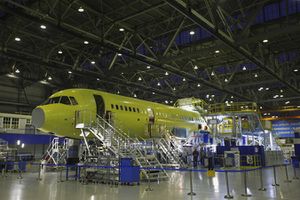

Assembly of prototype in January 2016
Russian Prime Minister Dmitry Medvedev attended the presentation of the MC-21 airliner

The initial design is to include composite materials (about 33%), increasing to 40-45% provided a composite wing is added in 2015. In March 2008, a contract was signed which will see Sukhoi Civil Aircraft Company, a subsidiary of Sukhoi Corporation, designing and manufacturing composite wings for the aircraft.[14] Engines supplied for the Russian domestic market will be the Aviadvigatel PD-14.[15][16] In December 2009, Pratt & Whitney announced that the Irkut Corporation had selected the PW1000G engine to power the MC-21.[17] On 20 August 2009, Hamilton Sundstrand, a subsidiary of United Technologies Corporation, announced they had signed a $2.3 billion deal with Irkut to supply systems for the MC-21.[18] Irkut also selected Rockwell Collins and its Russian partner Avionika to supply the MC-21's avionics.[19] Goodrich also a subsidiary of United Technologies Corporation, along with Aviapribor, secured the mandate to develop an integrated control system for the MC-21.[20] The Interior will feature furnishings from Zodiac Aerospace, coordinated from C&D Zodiac in Huntington Beach, California. The Water and Waste Systems of the aircraft will incorporate innovations from Zodiac Aerospace in Carson, California.

The designer plans that the MC-21 will be 10-15% more efficient than Airbus and Boeing aircraft in the same class and it will have a 15% structural weight efficiency advantage, 20% lower operating costs, and 15% lower fuel consumption than the Airbus A320[14] with an initial target price of $35 million USD.[21]

التصميم

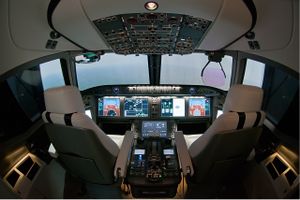

Mock-up of the flight deck featuring a HUD

The MC-21 is composite structure low-wing cantilever monoplane with a tricycle landing gear and powered by two wing-mounted turbofan engines. It has a glass cockpit with side-stick controls and an optional Head-up display. To meet a requirement to speed up turn-round time the 3.81m wide cabin has wider luggage racks than contempary types.

التنويعات

The baseline MC-21-300 is designed around 180 passengers in single-class configuration and will be followed by a 153-seat -200 with basic and extended-range models, plus a very-long-range MC-21-200LR. A larger 212-seat -400 version is taken under consideration. Initially, a smaller variant, MC-21-100, with a capacity of up to 132 passengers, was also proposed, but, in order to avoid competition with the Sukhoi Superjet 130, it was cancelled.[22] Cargo and business variants are also being considered.[1]

MC-21-200
Shortened version with up to 176 passengers.
MC-21-300
Standard model with up to 211 passengers.
MC-21-400
Planned stretched model with up to 230 passengers.

المواصفات

Specifications[23][24][25][26]
MC-21-200 MC-21-300 MC-21-400
طاقم القمرة Two
عدد المقاعد 176 (1-class, maximum)
156 (1-class, standard)
132 (2-class, standard) 		211 (1-class, maximum)
181 (1-class, standard)
163 (2-class, standard) 		230 (1-class, dense)
212 (1-class, standard)
178 (2-class, standard)
Seat pitch 82 cm (32 in) in (1-class, standard), 76 cm (30 in) in (1-class, dense)
الطول 36.8 m (120 ft 9 in) 42.3 m (138 ft 9 in) 46.7 m (153 ft 3 in)
Wingspan 35.9 m (117 ft 9 in) 36.8 m (120 ft 9 in)
Height 11.5 m (37 ft 9 in) 12.7 m (41 ft 8 in)
Fuselage width 4.06 m (13 ft 4 in)
Cabin width 3.81 m (12 ft 6 in)
أقصى وزن إقلاع 72،390 kg (159،590 lb) 79،250 kg (174،720 lb) 87،230 kg (192،310 lb)
أقصى وزن هبوط 61،650 kg (135،910 lb) 69،100 kg (152،300 lb) -
الحمولة القصوى 17،560 kg (38،710 lb) 22،600 kg (49،800 lb) -
سعة الشحن 31.1 m3 (1،100 cu ft) 48 m3 (1،700 cu ft) 70.1 m3 (2،480 cu ft)
أقصى سعة وقود 20،400 kg (45،000 lb) -
المدى بأقصى حمولة 6،400 km (3،500 nmi) 6،000 km (3،200 nmi) 5،500 km (3،000 nmi)
المحرك (x 2) Aviadvigatel PD-14A
Pratt & Whitney PW1428G 		Aviadvigatel PD-14
Pratt & Whitney PW1431G 		Aviadvigatel PD-14M
أقصى دفع (x 2) 123 kN
12,540 kgf; 28,000 lbf 		137 kN
14,000 kgf; 31,000 lbf 		153 kN
15,600 kgf; 34,000 lbf

الطلبات

Date Company Entering service Type Reference
MC-21-200 MC-21-300 MC-21-400 Options
1 September 2010 أيروفلوت 2016 50 0 [27]
21 July 2010 Nordwind Airlines — 3 2
21 July 2010 VEB Leasing — 15 15
18 August 2011 Ilyushin Finance Co. 2019 - 28 - 22 [28][29]
23 August 2011 Rostec 2017 15 35 - 35 [30][31]
16 September 2011 IrAero — - 10 - 10 [32]
27 August 2013 UTAir — - 10 - -
30 August 2013 Red Wings Airlines 2019 - 10 - - [33]
9 September 2015 القاهرة للطيران — 6 4 [34]
8 June 2016 الخطوط الجوية الأذربيجانية — 10 — [35]
الإجمالي 192 88
