إيرباص إيه 400إم

A400M Atlas

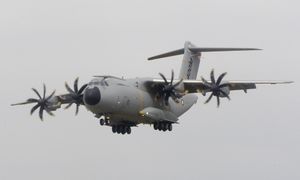

	The second prototype A400M, Grizzly 2, at the 2010 Farnborough Airshow
Role	Long-range military transport
Manufacturer	Airbus Military
First flight	11 December 2009
Introduction	2013
Status	In service
Primary users	French Air Force; Spanish Air Force (planned) ; German Air Force (planned) ; See Operators below for others
Produced	2007–present
Number built	6

إيرباص إيه 400 إم Airbus A400M Atlas هي طائرة شحن عسكرية ذات أربع محركات من إنتاج شركة إيرباص.

المشغلون

التاريخ	البلد	الطلبات	تاريخ الدخول في الخدمة	الملاحظات
27 May 2003	ألمانيا	53	Expected November 2014	Order reduced from 60 to 53 (plus 7 options),^[2] and will try to resell 13, leaving 40.^[3]
	فرنسا	50	August 2013	Two more aircraft to be delivered during 2013.^[4]
	إسپانيا	27	Unknown	Original budget of €3,453M increased to €5,493M in 2010.^[5] Requirement reduced to 14 aircraft and will try to resell the remaining 13.^[6]
	المملكة المتحدة	22	Expected 2015^[7]	Order reduced from 25 to 22.
	تركيا	10	Expected 2013^[4]	A400M deliveries to be completed by 2018.^[8]
	بلجيكا	7	Expected 2018–20
	لوكسمبورگ	1	Expected 2019
December 2004	جنوب أفريقيا	0	Expected 2010	Order of 8 units cancelled due to delivery delays and resulting increased costs.
8 December 2005	ماليزيا	4^[9]	2015
Total:		174

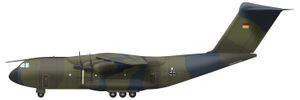

Artist's impression of the A400M in German Air Force livery

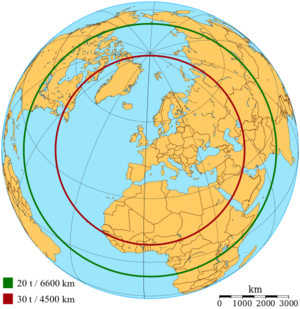

Operational range of A400M with 20-طن-متري (44،000 lb) and 30-طن-متري (66،000 lb) payloads, flown from Paris, France

البيانات من Airbus Military specifications^[10]

المواصفات العامة

الطاقم: 3 or 4 (2 pilots, 3rd optional, 1 loadmaster)
الحمولة: 37,000 kg (81,600 lb)
- 116 fully equipped troops / paratroops,
- up to 66 stretchers accompanied by 25 medical personnel
الطول: 45.1 m (148 ft 0 in)
الباع: 42.4 m (139 ft 1 in)
الارتفاع: 14.7 m (48 ft 3 in)
الوزن الفارغ: 76،500 kg (168،654 lb) ; operating weight^[11]
وزن الإقلاع الأقصى: 141،000 kg (310،852 lb)
سعة الوقود: 50,500 kg (111,330 lb) internal fuel
Max landing weight: 122,000 kg (268,963 lb)
Powerplant: 4 × Europrop TP400-D6^[12] turboprop, 8،250 kW (11،060 hp) each
المراوح الدافعة: 8-bladed, 5.3 m (17 ft 5 in) diameter

الأداء

سرعة التجوال: 780 km/h (480 mph, 420 kn) (Mach 0.68–0.72)
Initial cruise altitude: at MTOW: 9,000 m (29,000 ft)
المدى: 3،298 km (2،049 mi, 1،781 nmi) at max payload (long range cruise speed; reserves as per MIL-C-5011A)
- Range at 30-tonne payload: 4,540 km (2,450 nmi)
- Range at 20-tonne payload: 6,390 km (3,450 nmi)
Ferry range: 8،710 km (5،410 mi, 4،700 nmi)
سقف الخدمة: 11،300 m (37،100 ft)
Tactical takeoff distance: 980 m (3,215 ft) (aircraft weight 100 tonnes, soft field, ISA, sea level)
Tactical landing distance: 770 m (2,526 ft) (as above)
Turning radius (ground): 28.6 m

طائرات شبيهة

^ خطأ استشهاد: وسم <ref> غير صحيح؛ لا نص تم توفيره للمراجع المسماة ff
^ "Durchbruch im Streit über A400M" (German) Sueddeutsche Zeitung. Retrieved: 27 October 2010.
^ "Germany to take fewer A400M planes." AFP, 28 January 2011.
^ ^أ ^ب "La France a réceptionné le premier Airbus A400M" (French) Le Figaro. Retrieved: 2013-08-01.
^ "Evaluación de los Programas Especiales de Armamento (PEAs)" (in Spanish). Ministerio de Defensa, Madrid (Grupo Atenea), September 2011. Retrieved: 30 September 2012.
^ "Spain aims to resell half A400M fleet." Reuters. Retrieved: 2 August 2013.
^ "Cameron welcomes RAF's last C-17 to Brize Norton." Flight Global. Retrieved: 21 January 2011.
^ "Military cargo plane to be delivered to Turkey in 2013." Hürriyet Daily News. Retrieved: 1 July 2011.
^ خطأ استشهاد: وسم <ref> غير صحيح؛ لا نص تم توفيره للمراجع المسماة myorder4
^ "A400M Technical Specifications." Airbus Military (a400m.com). Retrieved: 23 April 2010.
^ "Airbus Military A400M". Jane's All the World's Aircraft. Jane's Information Group, 2010. (subscription article, dated 24 February 2010).
^ "A400M engine decision." Airbus.
